Introduction¶
- Paper: Gene regulatory network inference from CRISPR perturbations in primary CD4+ T cells elucidates the genomic basis of immune disease.
- Study design: Bulk RNA-seq of samples with CRISPR targeted KO on select genes and control.
- Data: tsv.gz file containing differential expression results between samples with each target gene KOed (3 samples each) and the same control (27 samples). Preprocessed from supplementary material of its biorxiv preprint.
- Goal: Reconstructing a gene regulatory network with causal inference.
Practicalities¶
- No attendance sheet requirement: if uninterested/not useful/done, leave any time.
- Open the slides and download and open the notebook. Use the slides for reference.
- You task is to read, understand, write when needed, and run each code block sequentially.
- You should write the '???' areas in two types:
- Single-line code starting with
##### Your code:. Remove characters before and including ':'. Extra lines is not needed but allowed. - Multi-line code starting with
#### Your code starts here ####and ends with##### Your code ends here #####
- Single-line code starting with
- If your code is correct, you should get the same output as in the slides.
- Keep going for 1.5h or until you complete the final slide.
- I am available to answer questions any time.
How: imagine you are doing research¶
- First learn to DIY: google, github copilot & ChatGPT
- Then ask someone who might have completed this code block. Move around if needed.
- If everything fails, ask me.
- The right (aka working) solution is not unique.
TOC¶
Hypothesis: P-|A->B or P-|A-|B
- Load differential expression (DE) results
- List CRISPR perturbations {PA}, each targeting a KOed gene A
- For each perturbation PA, check PA-|A in DE results and retain only if PA gives significant repression
- For each remaining perturbation PA and each gene B, if PA->B or PA-|B in DE results, introduce edge A-|B or A->B into our network
- Save network to file
- Analyze network

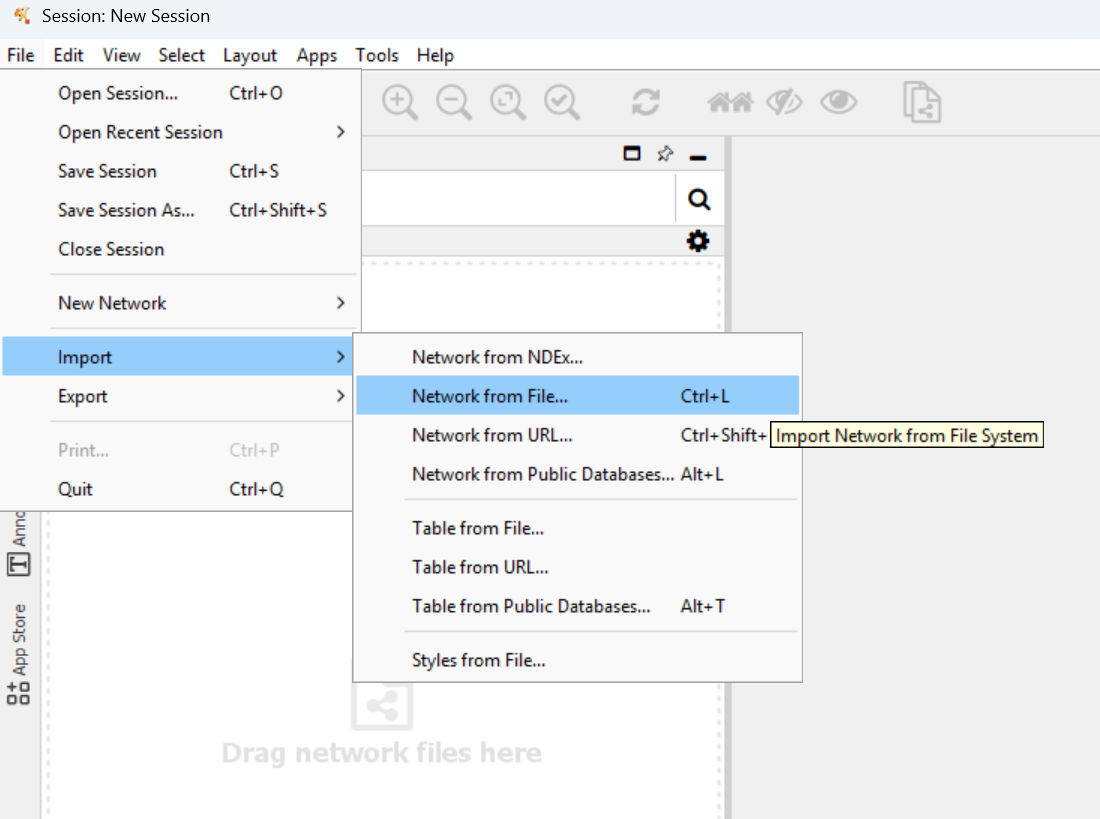

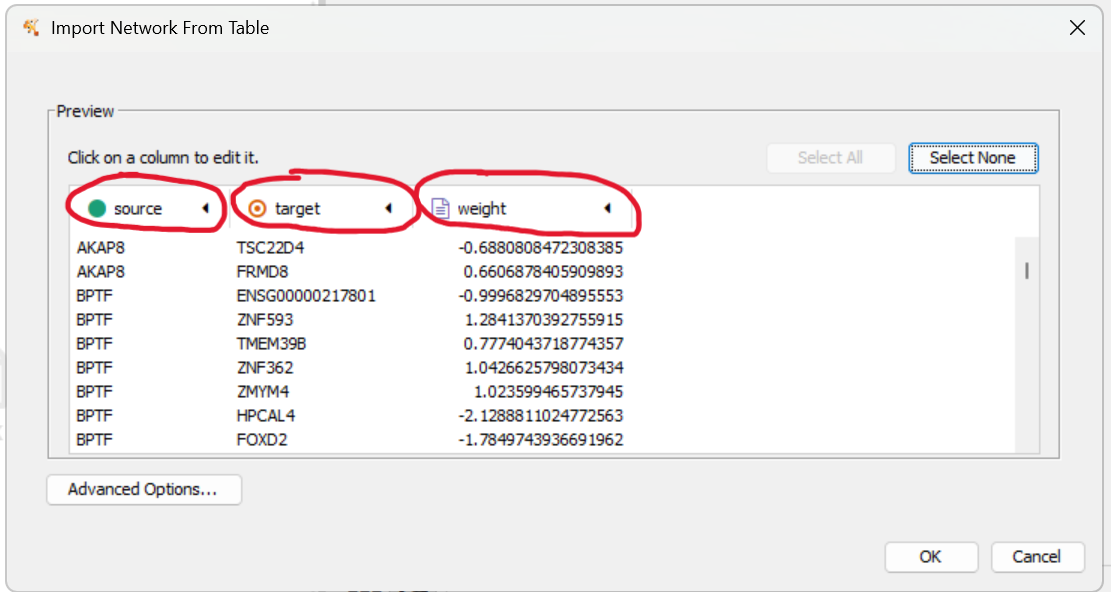

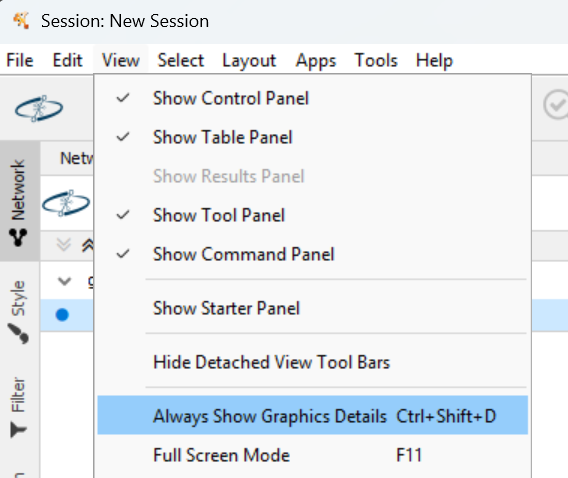

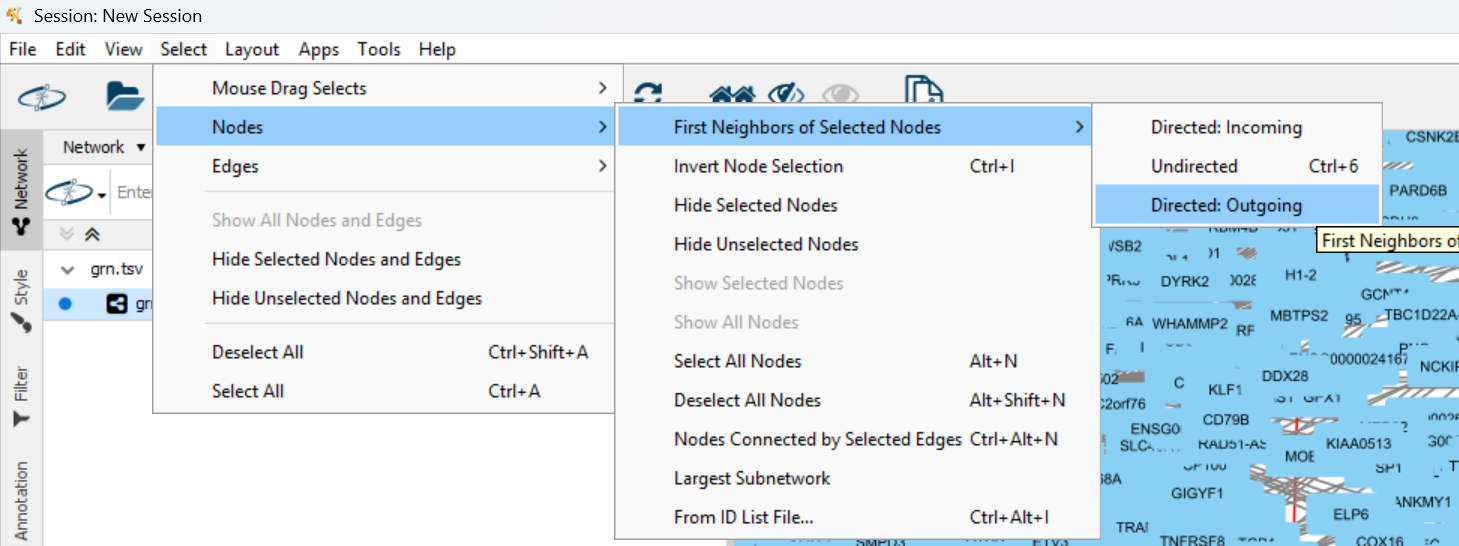

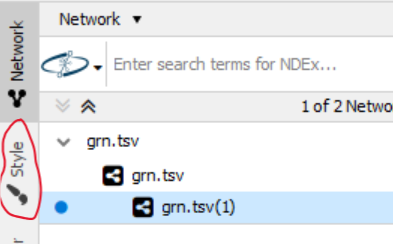

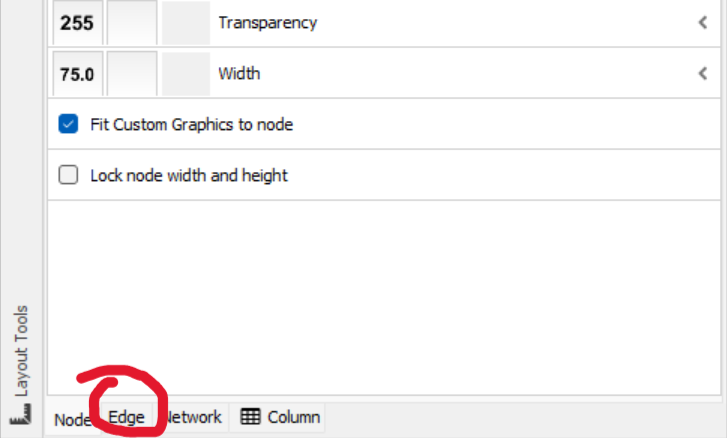

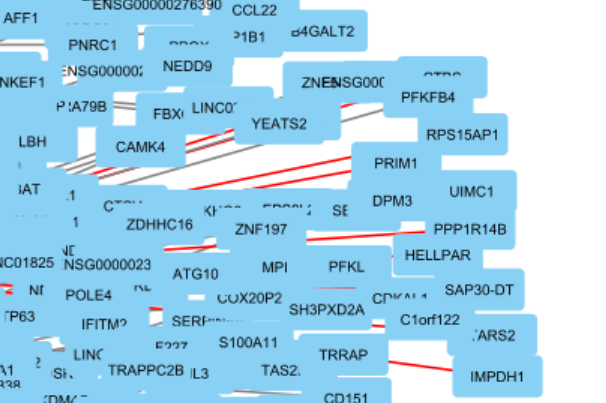

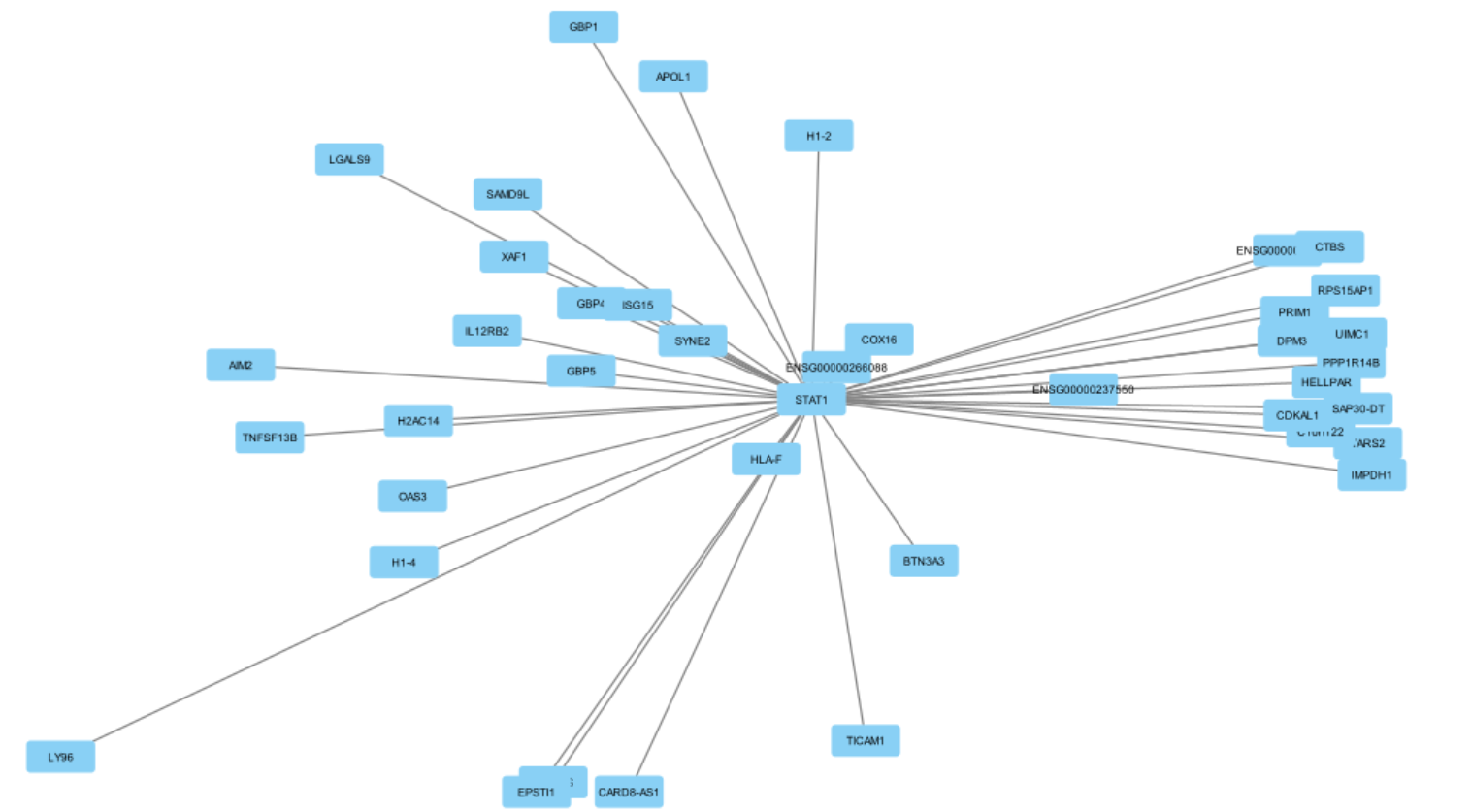

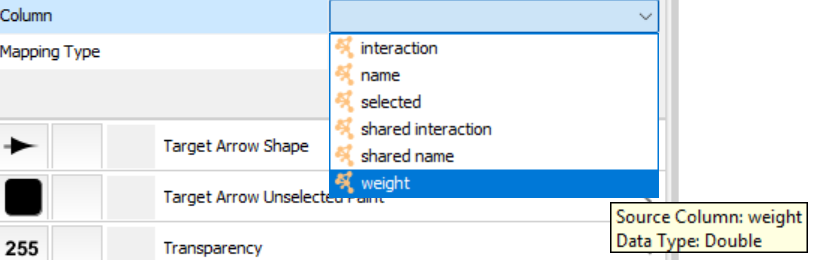

- Visualize network with Cytoscape
0. Preparation¶
- Create folder
runin the same directory as this notebook. - Download
https://raw.githubusercontent.com/grnlab/courses/refs/heads/master/2025_BBS764/run/processed.tsv.gzinto folderrunand name it asprocessed.tsv.gz.
In [1]:
from os.path import isfile
import numpy as np
import pandas as pd
import networkx as nx
import matplotlib.pyplot as plt
# Input and output file paths
path_in='run/processed.tsv.gz'
path_out='run/grn.tsv'
# Check if input file exists
if not isfile(path_in):
raise NotImplementedError(f"File {path_in} not found.")
1. Load DE results¶
In [2]:
#### Your code:df=pd.read_csv(???)
df.head(3)
Out[2]:
| gene | target | p | lfc | |
|---|---|---|---|---|
| 0 | ISG15 | AKAP8 | 0.385355 | -0.251955 |
| 1 | ACOT7 | AKAP8 | 0.349425 | -0.264555 |
| 2 | TNFRSF25 | AKAP8 | 0.277335 | 0.236204 |
Column definitions
- gene: The gene whose differential expression results are shown on this row.
- target: This row includes differential expression results computed between samples with this gene targeted for KO v.s. controls.
- p: Differential expression P-value. For the perturbed gene (when column
geneis the same astarget), this is raw P-value. For other genes, this is adjusted P-value. - lfc: Differential expression log2 fold change.
1. Load DE results¶
In [2]:
df=pd.read_csv(path_in,sep='\t',index_col=None)
df.head(3)
Out[2]:
| gene | target | p | lfc | |
|---|---|---|---|---|
| 0 | ISG15 | AKAP8 | 0.385355 | -0.251955 |
| 1 | ACOT7 | AKAP8 | 0.349425 | -0.264555 |
| 2 | TNFRSF25 | AKAP8 | 0.277335 | 0.236204 |
Column definitions
- gene: The gene whose differential expression results are shown on this row.
- target: This row includes differential expression results computed between samples with this gene targeted for KO v.s. controls.
- p: Differential expression P-value. For the perturbed gene (when column
geneis the same astarget), this is raw P-value. For other genes, this is adjusted P-value. - lfc: Differential expression log2 fold change.
2. List perturbations and DE results of associated genes¶
In [3]:
# Whether each row is the DE results of a gene targeted by the CRISPR KO
#### Your code:is_target=???
# Extract DE results of targeted genes
df_target_initial=df[is_target].set_index('target',drop=True).drop(columns=['gene'])
df_target_initial
Out[3]:
| p | lfc | |
|---|---|---|
| target | ||
| AKAP8 | 3.611740e-14 | -0.831944 |
| ARID5A | 2.570915e-02 | 0.274388 |
| ATXN7L3 | 2.849576e-03 | 0.242471 |
| BPTF | 1.747578e-36 | -0.778508 |
| CBFB | 1.005515e-153 | -1.723185 |
| ... | ... | ... |
| ZKSCAN1 | 2.101872e-30 | -1.034257 |
| ZNF217 | 1.588385e-27 | -0.845768 |
| ZNF319 | 3.180268e-14 | 0.900860 |
| ZNF341 | 3.103559e-03 | 0.795138 |
| ZNF655 | 2.228071e-03 | 0.197382 |
67 rows × 2 columns
2. List perturbations and DE results of associated genes¶
In [3]:
# Whether each row is the DE results of a gene targeted by the CRISPR KO
is_target=df['gene']==df['target']
# Extract DE results of targeted genes
df_target_initial=df[is_target].set_index('target',drop=True).drop(columns=['gene'])
df_target_initial
Out[3]:
| p | lfc | |
|---|---|---|
| target | ||
| AKAP8 | 3.611740e-14 | -0.831944 |
| ARID5A | 2.570915e-02 | 0.274388 |
| ATXN7L3 | 2.849576e-03 | 0.242471 |
| BPTF | 1.747578e-36 | -0.778508 |
| CBFB | 1.005515e-153 | -1.723185 |
| ... | ... | ... |
| ZKSCAN1 | 2.101872e-30 | -1.034257 |
| ZNF217 | 1.588385e-27 | -0.845768 |
| ZNF319 | 3.180268e-14 | 0.900860 |
| ZNF341 | 3.103559e-03 | 0.795138 |
| ZNF655 | 2.228071e-03 | 0.197382 |
67 rows × 2 columns
3. Check PA−|A visually with volcano plot¶
In [4]:
fig,ax=plt.subplots(figsize=(3,2.5))
# Draw scatter plot of log2 fold change vs -log10(p-value)
#### Your code:ax.scatter(???,s=10)
ax.set_xlabel('log2 fold change');ax.set_ylabel('-log10(p-value)')
ax.set_title('Differential expression of perturbed genes'); plt.show()
Some CRISPR KO perturbations may be ineffective with lfc>0 or large P-value. We will remove them.
3. Check PA−|A visually with volcano plot¶
In [4]:
fig,ax=plt.subplots(figsize=(3,2.5))
# Draw scatter plot of log2 fold change vs -log10(p-value)
ax.scatter(df_target_initial['lfc'],-np.log10(df_target_initial['p']),s=10)
ax.set_xlabel('log2 fold change');ax.set_ylabel('-log10(p-value)')
ax.set_title('Differential expression of perturbed genes'); plt.show()
Some CRISPR KO perturbations may be ineffective with lfc>0 or large P-value. We will remove them.
3. Find perturbations with significant repression¶
In [5]:
# Raw P value cutoff for differential expression of targeted gene A
cut_p_target=1E-5
# LogFC cutoff for differential expression of targeted gene A
cut_lfc_target=0.5
# Identify perturbations leading to significant repression of the targeted gene
#### Your code:is_repression=(df_target_initial['p']<=???)&(???)
# Extract perturbations leading to significant repression
targets=df_target_initial.index[is_repression]
targets
Out[5]:
Index(['AKAP8', 'BPTF', 'CBFB', 'CLOCK', 'ELK4', 'EPAS1', 'ETS1', 'FOXK1',
'FOXP1', 'GATA3', 'IL2RA', 'IRF2', 'JAK3', 'KLF9', 'KMT2A', 'MBD2',
'MED12', 'NFE2L3', 'NFKB1', 'PTEN', 'REL', 'RELA', 'RELB', 'RORC',
'SETDB1', 'SREBF1', 'STAT1', 'STAT2', 'STAT3', 'STAT5A', 'STAT5B',
'TBX21', 'TCF3', 'TP53', 'TTF1', 'YBX1', 'YY1', 'ZBTB24', 'ZKSCAN1',
'ZNF217'],
dtype='object', name='target')
3. Find perturbations with significant repression¶
In [5]:
# Raw P value cutoff for differential expression of targeted gene A
cut_p_target=1E-5
# LogFC cutoff for differential expression of targeted gene A
cut_lfc_target=0.5
# Identify perturbations leading to significant repression of the targeted gene
is_repression=(df_target_initial['p']<=cut_p_target)&(df_target_initial['lfc']<=-cut_lfc_target)
# Extract perturbations leading to significant repression
targets=df_target_initial.index[is_repression]
targets
Out[5]:
Index(['AKAP8', 'BPTF', 'CBFB', 'CLOCK', 'ELK4', 'EPAS1', 'ETS1', 'FOXK1',
'FOXP1', 'GATA3', 'IL2RA', 'IRF2', 'JAK3', 'KLF9', 'KMT2A', 'MBD2',
'MED12', 'NFE2L3', 'NFKB1', 'PTEN', 'REL', 'RELA', 'RELB', 'RORC',
'SETDB1', 'SREBF1', 'STAT1', 'STAT2', 'STAT3', 'STAT5A', 'STAT5B',
'TBX21', 'TCF3', 'TP53', 'TTF1', 'YBX1', 'YY1', 'ZBTB24', 'ZKSCAN1',
'ZNF217'],
dtype='object', name='target')
3. Retain perturbations with significant repression¶
In [6]:
# Filter DE results of targeted genes with perturbations leading to significant repression
df_target=df_target_initial.loc[targets]
# Filter DE results of untargeted genes with perturbations leading to significant repression
#### Your code:df=df[???]
df.shape
Out[6]:
(67305, 4)
3. Retain perturbations with significant repression¶
In [6]:
# Filter DE results of targeted genes with perturbations leading to significant repression
df_target=df_target_initial.loc[targets]
# Filter DE results of untargeted genes with perturbations leading to significant repression
df=df[df['target'].isin(targets)]
df.shape
Out[6]:
(67305, 4)
4. Test PA->B or PA-|B - parameters¶
In [7]:
# Adjusted P value cutoff for differential expression of untargeted genes
cut_p=0.05
# LogFC cutoff for differential expression of untargeted genes
cut_lfc=0.5
4. Test PA->B or PA-|B - 1 perturbation¶
Part I: Extracting DE results for this perturbation
In [8]:
# Initialize empty list of edges
edges=[]
# Use the first targeted gene to try your code
target=targets[0]
# Extract differential expression results for the targeted gene
#### Your code: s_target=???
# Extract differential expression results for the first perturbation
#### Your code:df1=df[???]
# Extract differential expression results for untargeted genes
#### Your code: df1_other=df1[???]
print(s_target)
df1_other.head(2)
p 3.611740e-14 lfc -8.319442e-01 Name: AKAP8, dtype: float64
Out[8]:
| gene | target | p | lfc | |
|---|---|---|---|---|
| 0 | ISG15 | AKAP8 | 0.385355 | -0.251955 |
| 1 | ACOT7 | AKAP8 | 0.349425 | -0.264555 |
4. Test PA->B or PA-|B - 1 perturbation¶
Part I: Extracting DE results for this perturbation
In [8]:
# Initialize empty list of edges
edges=[]
# Use the first targeted gene to try your code
target=targets[0]
# Extract differential expression results for the targeted gene
s_target=df_target.loc[target]
# Extract differential expression results for the first perturbation
df1=df[df['target']==target]
# Extract differential expression results for untargeted genes
df1_other=df1[df1['gene']!=target]
print(s_target)
df1_other.head(2)
p 3.611740e-14 lfc -8.319442e-01 Name: AKAP8, dtype: float64
Out[8]:
| gene | target | p | lfc | |
|---|---|---|---|---|
| 0 | ISG15 | AKAP8 | 0.385355 | -0.251955 |
| 1 | ACOT7 | AKAP8 | 0.349425 | -0.264555 |
4. Test PA->B or PA-|B - 1 perturbation¶
Part II: finding significant DEs
In [9]:
# Identify which genes are differentially expressed due to the perturbation
#### Your code:is_de=(???)&(???)
# Extract differentially expressed genes due to this perturbation
df1_de=df1_other[is_de]
# Use a loop to create edges in the GRN, one at a time iteratively from the targeted gene to each differentially expressed gene
for idx in df1_de.index:
# Starting node of the edge
#### Your code:node_start=???
# Ending node of the edge
#### Your code:node_end=???
# Weight of the edge
#### Your code:edge_weight=???
# Add the edge
edges.append((node_start,node_end,edge_weight))
print('Number of edges:',len(edges))
edges[:3]
Number of edges: 2
Out[9]:
[('AKAP8', 'TSC22D4', np.float64(-0.6880808472308385)),
('AKAP8', 'FRMD8', np.float64(0.6606878405909893))]
4. Test PA->B or PA-|B - 1 perturbation¶
Part II: finding significant DEs
In [9]:
# Identify which genes are differentially expressed due to the perturbation
is_de=(df1_other['p']<=cut_p)&(df1_other['lfc'].abs()>=cut_lfc)
# Extract differentially expressed genes due to this perturbation
df1_de=df1_other[is_de]
# Use a loop to create edges in the GRN, one at a time iteratively from the targeted gene to each differentially expressed gene
for idx in df1_de.index:
# Starting node of the edge
node_start=target
# Ending node of the edge
node_end=df1_de.loc[idx,'gene']
# Weight of the edge
edge_weight=df1_de.loc[idx,'lfc']/s_target['lfc']
# Add the edge
edges.append((node_start,node_end,edge_weight))
print('Number of edges:',len(edges))
edges[:3]
Number of edges: 2
Out[9]:
[('AKAP8', 'TSC22D4', np.float64(-0.6880808472308385)),
('AKAP8', 'FRMD8', np.float64(0.6606878405909893))]
4. Now use a loop to iterate over all remaining perturbations¶
In [10]:
# Re-initialize empty list of edges
edges=[]
for target in targets:
# Paste all your code in above two code blocks after the line `target=targets[0]`. Exclude `print` lines. Increase indentation.
#### Your code starts here ####
???
##### Your code ends here #####
print('Number of edges:',len(edges))
edges[-3:]
Number of edges: 10418
Out[10]:
[('ZNF217', 'BCORP1', np.float64(-0.8909980321828219)),
('ZNF217', 'ENSG00000289707', np.float64(-0.6030418232529909)),
('ZNF217', 'MT-TI', np.float64(0.6806038568444858))]
4. Now use a loop to iterate over all remaining perturbations¶
In [10]:
# Re-initialize empty list of edges
edges=[]
for target in targets:
# Paste all your code in above two code blocks after the line `target=targets[0]`. Exclude `print` lines. Increase indentation.
# Extract differential expression results for the targeted gene
s_target=df_target.loc[target]
# Extract differential expression results for the first perturbation
df1=df[df['target']==target]
# Extract differential expression results for untargeted genes
df1_other=df1[df1['gene']!=target]
# Identify which genes are differentially expressed due to the perturbation
is_de=(df1_other['p']<=cut_p)&(df1_other['lfc'].abs()>=cut_lfc)
# Extract differentially expressed genes due to this perturbation
df1_de=df1_other[is_de]
# Use a loop to create edges in the GRN, one at a time iteratively from the targeted gene to each differentially expressed gene
for idx in df1_de.index:
# Starting node of the edge
node_start=target
# Ending node of the edge
node_end=df1_de.loc[idx,'gene']
# Weight of the edge
edge_weight=df1_de.loc[idx,'lfc']/s_target['lfc']
# Add the edge
edges.append((node_start,node_end,edge_weight))
print('Number of edges:',len(edges))
edges[-3:]
Number of edges: 10418
Out[10]:
[('ZNF217', 'BCORP1', np.float64(-0.8909980321828219)),
('ZNF217', 'ENSG00000289707', np.float64(-0.6030418232529909)),
('ZNF217', 'MT-TI', np.float64(0.6806038568444858))]
4. Create pandas.Dataframe and networkx.DiGraph objects¶
In [11]:
df_grn=pd.DataFrame(edges,columns=['source','target','weight'])
grn=nx.from_pandas_edgelist(df_grn,source='source',target='target',edge_attr='weight',create_using=nx.DiGraph())
df_grn.head()
Out[11]:
| source | target | weight | |
|---|---|---|---|
| 0 | AKAP8 | TSC22D4 | -0.688081 |
| 1 | AKAP8 | FRMD8 | 0.660688 |
| 2 | BPTF | ENSG00000217801 | -0.999683 |
| 3 | BPTF | ZNF593 | 1.284137 |
| 4 | BPTF | TMEM39B | 0.777404 |
5. Save network to file¶
We have a minimal scenario where only an edge property file needs to be saved. More complex questions may also give rise to node properties such as expression level of each gene we want to consider altogether. They can be similarly saved as another file. The edge and node property files can then be loaded into Cytoscape. Cytoscape is a very popular gene network analysis and visualization software. We will not look into it in this workshop.
In [12]:
# Save edge properties into tsv file
#### Your code:df_grn.to_csv(path_out,???)
# Show the first 4 lines of the file
with open(path_out,'r') as f:
for _ in range(4):
print(f.readline().rstrip())
source target weight AKAP8 TSC22D4 -0.6880808472308385 AKAP8 FRMD8 0.6606878405909893 BPTF ENSG00000217801 -0.9996829704895553
5. Save network to file¶
We have a minimal scenario where only an edge property file needs to be saved. More complex questions may also give rise to node properties such as expression level of each gene we want to consider altogether. They can be similarly saved as another file. The edge and node property files can then be loaded into Cytoscape. Cytoscape is a very popular gene network analysis and visualization software. We will not look into it in this workshop.
In [12]:
# Save edge properties into tsv file
df_grn.to_csv(path_out,sep='\t',index=False,header=True)
# Show the first 4 lines of the file
with open(path_out,'r') as f:
for _ in range(4):
print(f.readline().rstrip())
source target weight AKAP8 TSC22D4 -0.6880808472308385 AKAP8 FRMD8 0.6606878405909893 BPTF ENSG00000217801 -0.9996829704895553
6. Basic properties of the network¶
In [13]:
# Number of nodes
#### Your code:nn=???
# Number of edges
#### Your code:ne=???
# Out-degree (number of target genes)
#### Your code:odegree=???
# Convert to pandas.Series
odegree=pd.Series(dict(odegree))
# Limit to nodes with at least one target
#### Your code:odegree=odegree[???]
# Sort out-degree in descending order
#### Your code:???
# Create a dataframe of nodes with network information
df_nodes=pd.DataFrame(odegree,index=odegree.index,columns=['outdegree'])
print(f'Number of nodes/regulators/edges: {nn}/{len(odegree)}/{ne}')
odegree.head()
Number of nodes/regulators/edges: 5100/34/10418
Out[13]:
CBFB 2052 MED12 1787 YY1 1038 ETS1 752 PTEN 687 dtype: int64
6. Basic properties of the network¶
In [13]:
# Number of nodes
nn=nx.number_of_nodes(grn)
# Number of edges
ne=nx.number_of_edges(grn)
# Out-degree (number of target genes)
odegree=grn.out_degree()
# Convert to pandas.Series
odegree=pd.Series(dict(odegree))
# Limit to nodes with at least one target
odegree=odegree[odegree>0]
# Sort out-degree in descending order
odegree.sort_values(ascending=False,inplace=True)
# Create a dataframe of nodes with network information
df_nodes=pd.DataFrame(odegree,index=odegree.index,columns=['outdegree'])
print(f'Number of nodes/regulators/edges: {nn}/{len(odegree)}/{ne}')
odegree.head()
Number of nodes/regulators/edges: 5100/34/10418
Out[13]:
CBFB 2052 MED12 1787 YY1 1038 ETS1 752 PTEN 687 dtype: int64
6. Plot out-degree distribution¶
In [14]:
fig,ax=plt.subplots(figsize=(3.2,2))
outdegree_values=list(odegree.values)
occurence=[outdegree_values.count(x) for x in set(outdegree_values)]
ax.stem(list(set(outdegree_values)),occurence,linefmt='black',markerfmt='ko',basefmt='none')
ax.set_xscale('log')
ax.set_xlabel('Out-degree (number of target genes)');ax.set_ylabel('Count')
ax.set_title('Out-degree distribution'); plt.show()
The number of targets varies greatly between different perturbed genes.
6. Redraw valcano plot with out-degree¶
In [15]:
# Merge with differential expression results
#### Your code:df_volcano=pd.merge(...,df_nodes,left_index=True,right_index=True,how='inner')
fig,ax=plt.subplots(figsize=(3,2))
# Draw scatter plot of log2 fold change vs -log10(p-value)
#### Your code:df_volcano['lfc'],-np.log10(df_volcano['p']),s=np.log(df_volcano[...])*10,c='k',alpha=0.4,lw=0
ax.set_xlabel('log2 fold change');ax.set_ylabel('-log10(p-value)')
ax.set_title('Differential expression of perturbed genes'); plt.show()
Target gene count does not strongly depend on DE strength of the perturbed genes. This is reassuring and indicating our results are not biased by KO quality.
6. Redraw valcano plot with out-degree¶
In [15]:
# Merge with differential expression results
df_volcano=pd.merge(df_target,df_nodes,left_index=True,right_index=True,how='inner')
fig,ax=plt.subplots(figsize=(3,2))
# Draw scatter plot of log2 fold change vs -log10(p-value)
ax.scatter(df_volcano['lfc'],-np.log10(df_volcano['p']),s=np.log(df_volcano['outdegree'])*10,c='k',alpha=0.4,lw=0)
ax.set_xlabel('log2 fold change');ax.set_ylabel('-log10(p-value)')
ax.set_title('Differential expression of perturbed genes'); plt.show()
Target gene count does not strongly depend on DE strength of the perturbed genes. This is reassuring and indicating our results are not biased by KO quality.
7. Load network into Cytoscape¶
Open Cytoscape. Go here:
Then choose your run/grn.tsv file.
7. Assign column properties¶
Make sure they show as below. If not, click on the column headers to change them.
After clicking OK, Cytoscape may take some time to calculate the layout, which is the position of each node. Then you will see something like a light blue disc.
7. Show network details¶
Actually the blue disc is the collection of nodes of the network. You can show network details with:
Then you can zoom in/out with control/command+mouse scroll.
7. Search for a gene¶
On the top right, you can search for a node by name.
Try searching for STAT1. STAT1 will be highlighted in yellow and its edges in red. However, some of them can be blocked by other genes.
7. Get a subnetwork¶
Make sure STAT1 is still selected. If not, search for it again. Then select its target genes in the network:
You can see more genes are highlighted due to selection. Then get a subnetwork of these genes:
7. Show arrow direction¶
The subnetwork is now clearer. But it's still unclear which gene regulates which because edge direction is not visible:
Let's go to visualization style
Then change "Target Arrow Shape" to this:
7. Change edge color¶
We can show gene activation/repression with red/blue colors. Unfold "Stroke Color (Unselected)":
This allows us to color each edge based its columns. Here we want the color to depend on edge weight, which is how much the target gene's log2FC per regulator's log2FC.
Let's make the color change continuously.
8. The END¶
Congratulations! You've completed this workshop.
Homework will be available later today over slack. It will be ungraded.
Gene Regulation III - Workshop aka Gene Regulatory Network (GRN) UMass Chan GSBS BBS764 Lingfei Wang 2025-03-03
